F2 DigiTrak Transmitter: A Reliable Guide for Horizontal Directional Drillinga

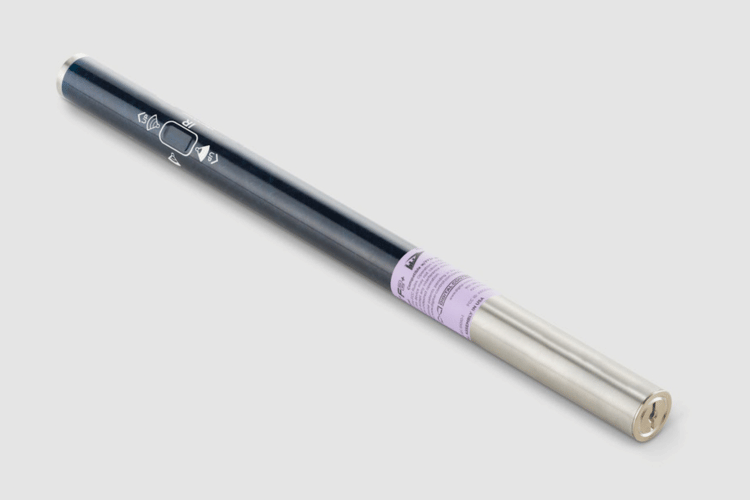

Figure: A DigiTrak transmitter (similar to the F2 model) which is a small cylindrical beacon placed in the drill head.

In horizontal directional drilling (HDD), precision is everything. The F2 DigiTrak transmitter is a specialized beacon used to guide and track the drill head during trenchless drilling operations. Housed in the drill’s tooling, this battery-powered sonde emits signals that allow crews above ground to pinpoint the drill head’s location, depth, and orientation in real time. In other words, the F2 transmitter serves as the “eyes underground” – sending critical data (like depth, tilt angle, roll position, temperature, and battery status) to a handheld receiver at the surface. This enables operators to steer the bore path accurately and avoid obstacles or existing utilities. The result is precise and reliable data during drilling operations, which is exactly why the F2 system is considered an ideal solution for HDD professionals.

Importantly, the F2 DigiTrak transmitter is part of a broader locating system developed by Digital Control Inc. (DCI), a leader in HDD guidance technology. The transmitter works in tandem with a DigiTrak F2 receiver (locator device) and optional remote displays, forming a complete guidance package. Together, they help drill crews navigate underground paths without extensive excavation, making trenchless installations of pipelines and cables efficient and minimally disruptive. Designed for a U.S. audience in mind, the F2 system uses familiar units (feet for depth, Fahrenheit for operating temperatures, etc.) and a user-friendly interface, so teams can adopt it quickly on job sites. In summary, the F2 DigiTrak transmitter is a workhorse tool for everyday directional drilling – offering a combination of accuracy, simplicity, and dependability that has made it popular across countless utility installation projects.

Key Technical Features of the F2 DigiTrak Transmitter

The F2 transmitter may be compact, but it’s packed with advanced features that give HDD crews confidence and control during drilling. Below are some of its key technical features and capabilities:

• Interference Avoidance with Multi-Frequency Technology: One of the standout features of the F2 system (especially the Falcon F2 series) is its ability to cut through jobsite interference “like a champ.” It does this by operating over multiple frequencies to find a clear signal band. Earlier F2 models provided two selectable frequency options (e.g. 12 kHz and 19 kHz) to switch as needed. The newer Falcon F2 transmitters take this further with Falcon Technology, scanning over 500 possible frequencies and automatically identifying the “quietest” ones to avoid noise from power lines, rebar, or other underground electric interference. In practice, this means fewer signal dropouts and false readings – no more drill crews scratching their heads when passing under a busy intersection or near buried fences, because the transmitter can sidestep those noisy frequency bands. This active interference mitigation is sometimes nicknamed an “Interference Slayer,” as the system analyzes and adapts to signal disruptions in real time.

• Multiple Power Modes (Multi-Power): Drilling conditions can vary widely – sometimes you need maximum signal strength to reach a deep target, and other times conserving battery life is more important on a long bore. The F2 transmitter addresses this with three easily selectable power modes. At the push of a button, an operator can toggle the transmitter to low, medium, or high power. Higher power outputs allow deeper bores and a longer usable range, while lower power settings extend the battery life and provide faster data update rates when full power isn’t needed. This flexibility lets crews “dial in” the ideal balance between depth capability and run-time. For example, on shallow drills a low-power mode can greatly prolong the transmitter’s battery, whereas a high-power mode can be reserved for those tough jobs where you need to reach maximum depth. This Multi-Power feature ensures the F2 is versatile enough for different project requirements without swapping out equipment.

• Impressive Depth and Range: Despite being targeted at everyday drilling jobs, the F2 transmitter offers substantial depth capability. Standard F2 transmitter setups can reliably transmit data at depths up to around 90 feet underground, covering the needs of most utility installations. Moreover, with the latest F2 Plus model (an enhanced version of the F2), the system can reach even greater depths – up to ~160 feet – and maintain data transmission up to 200 feet away from the drill head. This depth/data range of “160/200 ft” in the F2+ means that even for deeper bores or tracking the drill from a distance, the locator can still pick up the transmitter’s signal and telemetry. These numbers are quite robust for a mid-range HDD guidance system, giving professionals confidence that the transmitter will stay in communication throughout most standard bores. In practice, 160 feet of depth covers all but the most extreme HDD projects (like very deep river crossings), and a 200-foot data range allows the crew to continue monitoring the tool’s data even if they aren’t directly above it (useful for tracking the bore head as it progresses).

• “Ball-in-the-Box” Target Guidance: The F2 system employs a user-friendly guidance method often referred to as Ball-in-the-Box™. This is essentially a target steering technology that makes it intuitive for the operator to follow the drill head’s trajectory. On the F2 receiver’s screen, a graphical “ball” indicator shows the position of the transmitter relative to the intended bore path (the “box”). By keeping the ball centered in the box, operators can navigate confidently with proven target-tracking feedback. In simpler terms, this feature guides you in real-time to stay on the correct drilling path. It’s especially handy when trying to hit precise target exit points or avoiding veering off-course. The Target-in-the-Box® approach allows the locator to walk directly to a locate point from any direction, meaning the crew can find the drill head quickly even if coming at it from the side or behind. Overall, this visual guidance reduces guesswork and keeps bore paths straighter and on target.

• Quick Scan and Pairing: Setting up the F2 transmitter and receiver is designed to be fast and foolproof. The system features a “Quick Scan Pair” process – essentially, with just a couple of clicks the operator can scan the environment, select optimal frequencies, and pair the transmitter to the receiver. This streamlined setup means you can arrive at a new jobsite and be up and running with minimal delay. By automating frequency selection and pairing, the F2 minimizes the chance of human error in choosing the wrong channel, and it shortens the prep time before drilling can begin. For busy crews, these faster setup times contribute to greater productivity over the course of a day.

• Rugged Design and Reliability: HDD jobsites are harsh – equipment gets covered in mud, subjected to shocks, vibrations, and extreme temperatures. The F2 DigiTrak transmitter and its accompanying locator are built with this in mind. Durability is a core feature: the F2 is built to withstand tough jobsite conditions while still delivering consistent performance. Its housing is robust and sealed to handle being inserted in a drill head that’s cutting through soil and rock. The electronics are designed for stability, so the signal remains steady even as the drill shakes or water and drilling fluid splash around. This ruggedness is one reason the F2 system has earned a reputation for reliability — it’s not a fragile piece of lab equipment, but rather a field-tested tool that thousands of job sites worldwide have come to trust daily. Additionally, the transmitter’s battery life (aided by the multi-power settings) is long enough to handle typical bores; using modern lithium-ion packs, operators can expect many hours of continuous operation on a charge. All of these design considerations mean minimal downtime due to equipment issues – an obvious benefit for drilling professionals.

• Comprehensive Data for the Crew: While not a physical feature of the transmitter alone, it’s worth noting how the F2 system presents information to the crew. The transmitter’s signals are processed by the receiver to give a 3D view of the drill head’s position underground. Key data like depth, pitch (angle of inclination), roll (clock orientation of the tool), temperature, and battery status are all displayed in an intuitive format. For example, during a drilling operation, the F2 receiver can show both a bird’s-eye view and a side profile of the tool, helping the operator visualize the tool’s path in three dimensions. The system even provides predicted depth at the front locate point (FLP) so you can track progress on-the-fly without stopping to take manual readings. All this information can also be relayed to a remote display (like an F Series display on the drill rig) so the drill operator can see the guidance info in real time without leaving the rig. In short, the F2 transmitter feeds a wealth of data that, when combined with the DigiTrak receiver, greatly simplifies decision-making during drilling.


Typical Use Cases in HDD

The F2 DigiTrak transmitter is especially prized for what you might call the “everyday” HDD jobs. These are the bread-and-butter projects that happen in communities across the country – not necessarily the record-breaking river crossings, but the routine utility installations that keep things running. Common use cases where the F2 transmitter shines include:

• Installing Service Lines: Short to medium-length service lines (for water, gas, or sewer) that connect main lines to homes or small businesses are a perfect fit for the F2. These bores usually aren’t extremely deep, but they require accurate navigation to avoid existing infrastructure and to pop out right where needed on a homeowner’s property. The F2 provides the precision needed for these tighter-radius, relatively shallow bores.

• Fiber Optic and Telecom Runs: With the ongoing expansion of fiber-optic internet and telecom cables, many neighborhoods see HDD being used to bury these lines with minimal disruption. The F2 transmitter’s reliable tracking is ideal for guiding drills along neighborhood right-of-ways and under sidewalks or yards to install fiber optic cables. These jobs often encounter interference in urban/suburban settings (due to buried power lines or metallic objects), so the F2’s interference-avoidance ensures a clear signal even in crowded underground environments.

• Road and Driveway Crossings: Drilling under roads, driveways, or parking lots to install utilities (like connecting a new water main across a street) is another typical scenario. The F2 can guide the drill head underneath pavement at a safe depth, emerging on the other side precisely where intended. Its moderate depth range (dozens of feet) easily covers typical road-crossing profiles. With features like Target Steering and quick updates, crews can confidently navigate beneath obstacles like highways or rail beds, minimizing the chance of accidental surfacing or wrong turns.

• Municipal and Light Commercial Projects: The F2 transmitter is commonly used by municipal utility crews and contractors for light commercial utility relocations or upgrades. For instance, if a town is upgrading a section of water pipe or moving utility lines for a road widening, HDD with an F2 locator system can get the job done without open-cut trenching. These projects benefit from the F2’s balance of capability and simplicity – it’s sophisticated enough to ensure accuracy for the city engineers, but straightforward enough that field crews can rely on it day in and day out with minimal fuss.


In essence, the F2 DigiTrak transmitter is tailored to the kind of jobs most HDD professionals do frequently. As one industry outlook put it, “These are important jobs, but they are not deep, long river crossings. They don’t require wideband complexity – they require a clean signal, predictable readings and minimal downtime. For that workload, the DigiTrak F2 fits almost perfectly.”. In other words, it’s the right tool for standard HDD tasks that demand accuracy and reliability more than extreme range. By not over-engineering the system for rare scenarios, DCI made the F2 easy to learn and use, which means crews can deploy it on everyday projects very efficiently. If a company occasionally takes on a deeper or more interference-heavy bore, they might bring in a specialized transmitter (or use the F2’s extended features with F2+), but for 80% of regular jobs, the F2 handles it all with aplomb.

Benefits for HDD Professionals

Professionals in the horizontal drilling field often cite the DigiTrak F2 transmitter and locator system as a game-changer for their productivity. Here are some of the key benefits that HDD crews and contractors gain by using the F2 system:

• Reliable, Stable Performance – Fewer Interruptions: Perhaps the biggest benefit is the consistency of the signal and readings. HDD crews know all too well that when a locator’s signal becomes erratic or drops out, the entire drilling operation has to pause (nobody wants to drill blind). The F2 is known for delivering stable performance that contractors depend on for their daily work. Its ability to maintain a strong signal in challenging conditions means less downtime spent troubleshooting. Professionals report that with the F2, they experience far fewer moments where “the locator is second-guessed” because of jumpy readings. This reliability keeps projects on schedule and reduces stress for the drilling crew. Essentially, the F2 makes guidance “boringly reliable,” which is exactly what you want – the focus stays on drilling, not fiddling with the locator.

• Efficiency and Time Savings: By avoiding interference delays and offering quick setup, the F2 helps crews work faster. The Quick Scan Pair feature means you can get to drilling faster each morning or when moving to a new job site. Moreover, the multi-frequency interference avoidance translates to smooth drilling without frequent stops to change equipment or frequencies. As the manufacturer highlights, the Falcon F2+ system can “increase bore efficiency and reduce downtime, saving thousands of dollars per year.”. For an HDD contractor, time is money – every hour saved by not dealing with signal issues or re-drilling a missed target is an hour that can be spent on the next job. Over the course of a year, using a dependable system like F2 can indeed add up to significant cost savings through improved productivity.

• Ease of Use and Training: Another big benefit is the F2’s accessible, user-friendly design. The interface on the F2 receiver is designed to be intuitive, with clear icons and a streamlined display. New operators can pick up the system quickly, which simplifies training programs. In fact, many companies choose to standardize on the F2 for all their crews, so that everyone is using the same locator and transmitter combination day-to-day. This standardization means that a crew member trained on one rig’s F2 can easily work on another rig without a learning curve. The consistency builds confident operators. Rather than juggling multiple locator models (which can slow down learning and cause mistakes), having the F2 as the common tool makes training faster and more effective. The result is crews that are proficient and comfortable with their equipment – a direct benefit to safety and job quality.

• Versatility for Common Jobs: The F2 transmitter hits a sweet spot in capability that matches a wide range of jobs. For HDD professionals, this means one system can cover most of their contracts, from small residential bores to moderate commercial projects. The transmitter’s depth range and power settings are sufficient for the majority of drilling tasks, so operators rarely need to swap to a different system. Additionally, the F2 is compatible with a large variety of drill heads and housing sizes (it’s available in multiple lengths like 8-inch, 15-inch, and 19-inch transmitters to fit different rigs). This wide compatibility means contractors can use F2 transmitters in different drill rigs and with various tooling setups – a flexibility that protects their investment in the equipment. In other words, HDD professionals appreciate that the F2 can be their go-to locator on almost any job, reducing the need to own several specialty locators.

• Rugged Dependability and Support: We touched on the F2’s rugged design as a feature, and that directly translates to a benefit: dependability. Professionals know that equipment failure in the middle of a bore can be disastrous. The F2’s track record for durability (backed by solid warranties and support from DCI) gives crews peace of mind. They can drill in tough conditions – whether it’s a hot summer day or a freezing winter morning – and trust the transmitter to keep working within its broad operating range. This confidence means less worry about the gear and more focus on executing the bore plan. Moreover, Digital Control Inc. and its distributors provide training resources and customer support, so even if an issue arises, help is readily available. For example, DCI’s commitment to field support and continuous improvement (through their Falcon technology updates) ensures that HDD teams using the F2 are never left stranded without guidance or solutions.


In sum, the F2 DigiTrak transmitter brings a combination of accuracy, efficiency, and reliability that directly benefits HDD professionals in their daily work. It’s often called the “workhorse” or “everyday hero” of HDD locating because it delivers exactly what contractors need for most jobs: a stable, easy-to-use guidance system that gets the job done without hassle. By leveraging such tools, drilling crews can complete bores faster and with greater confidence, ultimately improving their project outcomes and profitability.

Conclusion

The F2 DigiTrak transmitter has proven itself as a cornerstone technology in horizontal directional drilling. For a broad range of drilling projects – from installing neighborhood utilities to crossing small roadways – this transmitter (paired with its locator system) provides the precision and trustworthiness that crews need to navigate underground pathways safely. We’ve explored how its technical features like multi-frequency interference avoidance, multi-power modes, and intuitive target guidance translate into real-world advantages such as reduced downtime, easier operation, and greater job efficiency.

In an industry where knowing exactly where your drill is beneath the ground can make or break a project, the F2 DigiTrak transmitter stands out as an essential tool. Its informative, accessible design means even a general tech-oriented audience can appreciate the innovation behind it: the device simplifies a complex task (tracking a drill underground) into a reliable process that professionals can count on daily. Whether you’re a seasoned drilling contractor or just someone curious about how we install cables and pipes without digging up the streets, the F2’s story is a great example of engineering solving practical problems. With tools like the F2 in hand, HDD professionals are well-equipped to tackle their work with confidence, knowing they have a steady guide underground helping them finish jobs on time and on target.

Overall, the F2 DigiTrak transmitter isn’t just another piece of equipment – it’s a trusted partner in the field that continues to enable safer and more efficient underground construction across the United States and around the world.

Sources: The information in this article was compiled from DigiTrak product specifications and reputable industry resources, including Digital Control Inc.’s published features of the F2/F2+ system, technical brochures and spec sheets, as well as insights from HDD field usage reports and expert blogs. These sources collectively highlight the F2 transmitter’s capabilities and its impact on horizontal drilling operations.
